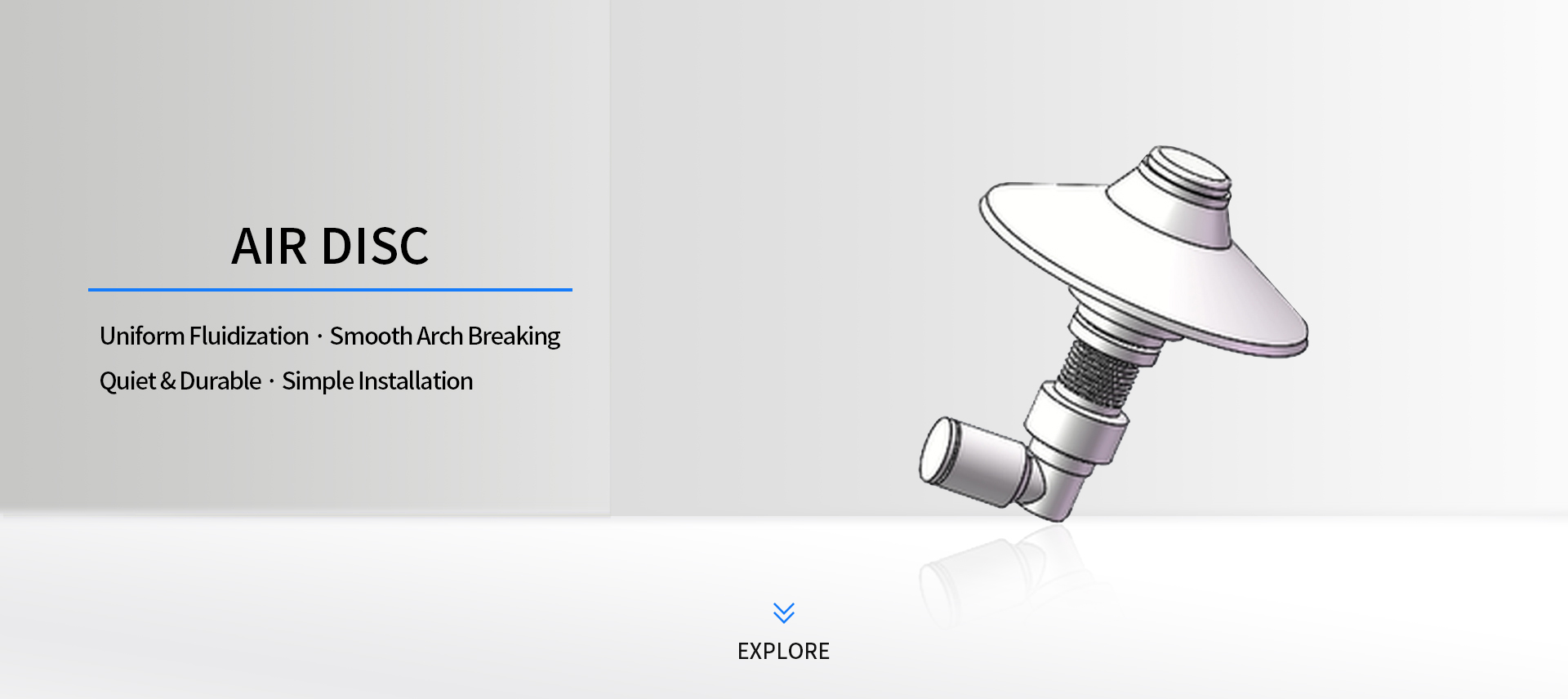

Air Disc

Air discs are installed on the inner wall of silos/hoppers, providing dual arch-breaking effects of air jetting and vibration to solve material bridging and blockage issues, ensuring smooth discharging.

应用场景

· Building Materials: cement, fly ash, gypsum powder, putty powder
· Chemical Industry: plastic pellets, pigments, resins, chemical powder
· Food & Feed: flour, starch, sugar, feed powder
· Metallurgy & New Energy: mineral powder, coal powder, cathode and anode materials for batteries

产品规格

· Material: Silicone/rubber disc, stainless steel/aluminum valve body

· Working Pressure: 0.2–0.6 MPa

· Installation Diameter: Commonly Φ22mm, small opening, easy installation

· Structure: Built-in check valve to prevent dust backflow; can be installed individually or in multiple groups


产品亮点

High Efficiency Arch Breaking

Combines simultaneous air jetting and

vibrationto quickly clear blockages and

ensure smooth material discharge.


Easy Installation

Compact size with small mounting

holes,can be directly installed on the

bin wall without modifying the silo

structure.

Durable & Low Maintenance

Wear-resistant silicone/rubber disc,

prevents clogging and backflow,

ensuring long service life and minimal

maintenance.


Strong Adaptability

Suitable for various powders and

granular materials,supports multi-point

combined installation for uniform flow

assistance.
