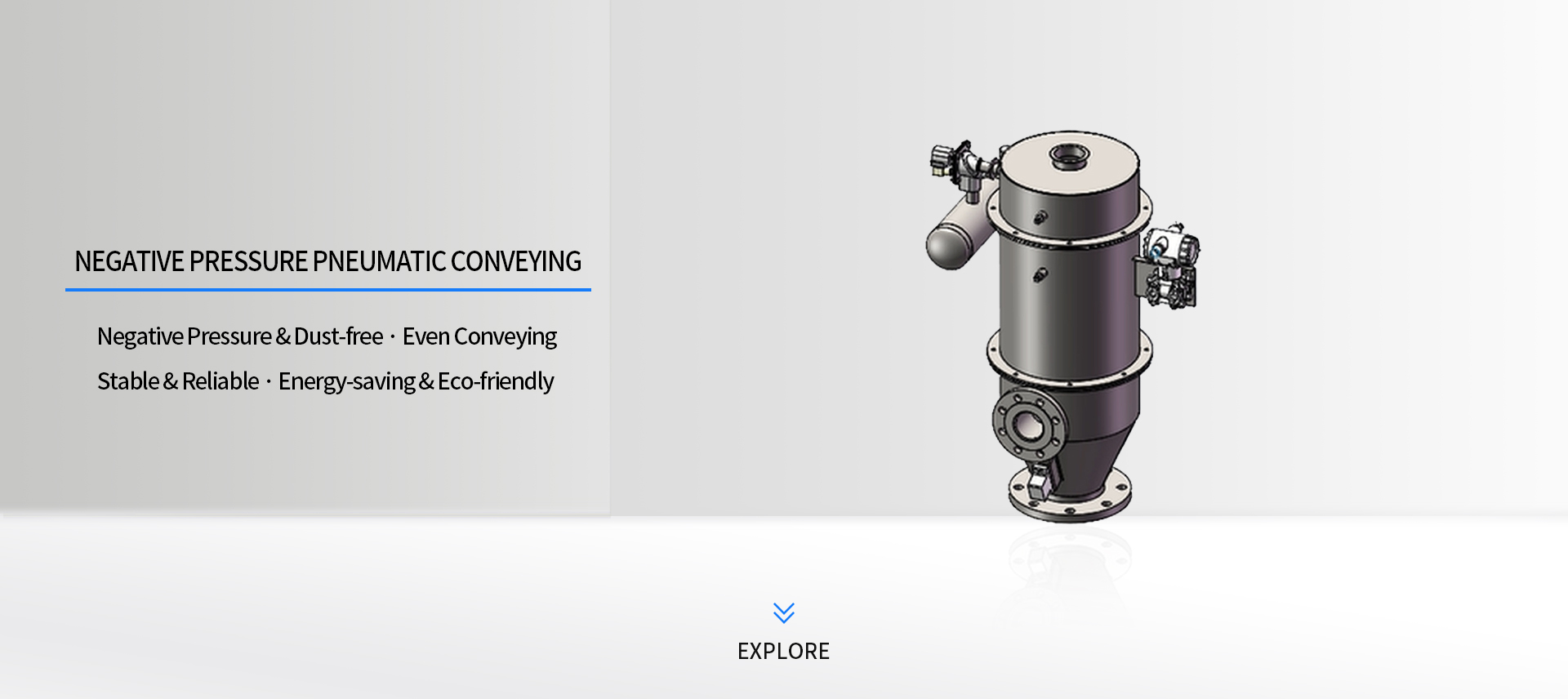

Negative Pressure Pneumatic Conveying-Negative Pressure Pneumatic Conveying-

应用场景

Environmental Protection: Workshop dust, boiler fly ash, waste dust transfer
Chemical Industry: Multi-station powder, pigment conveying, waste recycling
Food & Pharma: Flour, starch, medicinal powder; multi-point & clean conveying
Building Materials & Metallurgy: Sand & powder recovery, steel mill dust,
mixing station transfer

产品规格

· Conveying capacity: 1–50 t/h (customizable)

· Vacuum degree: -30 ~ -80 kPa

· Conveying distance: Horizontal 10–150 m, Vertical 5–30 m

· Material concentration: Solid-gas ratio 5–30 kg/kg (dilute phase / semi-dense phase)

· Core components: Negative pressure fan / vacuum pump, dust collector,

suction nozzle, conveying pipeline, PLC control system

· Suitable materials: Non-sticky powder and fine granular materials with particle size ≤3 mm

Dust-Free Collection

Adopts negative pressure suction

conveying with stable pressure

difference inside and outside the

pipeline.No dust leakage, clean

working environment, meeting

environmental protection

requirements.

Multi-Point Feeding

Can be connected to multiple

suction nozzles simultaneously,

realizing centralized conveying of materials from dispersed points,

adapting to complex workshop

layouts.

Flexible Operation

No need for high-level silos.

Suction nozzle is movable to

fit different feeding points.

Simple installation and

modification with small

space occupation.

Efficient Separation

Equipped with high-efficiency

dust collector,ensuring gas

emission meets standards, no

material waste and no secondary pollution.
