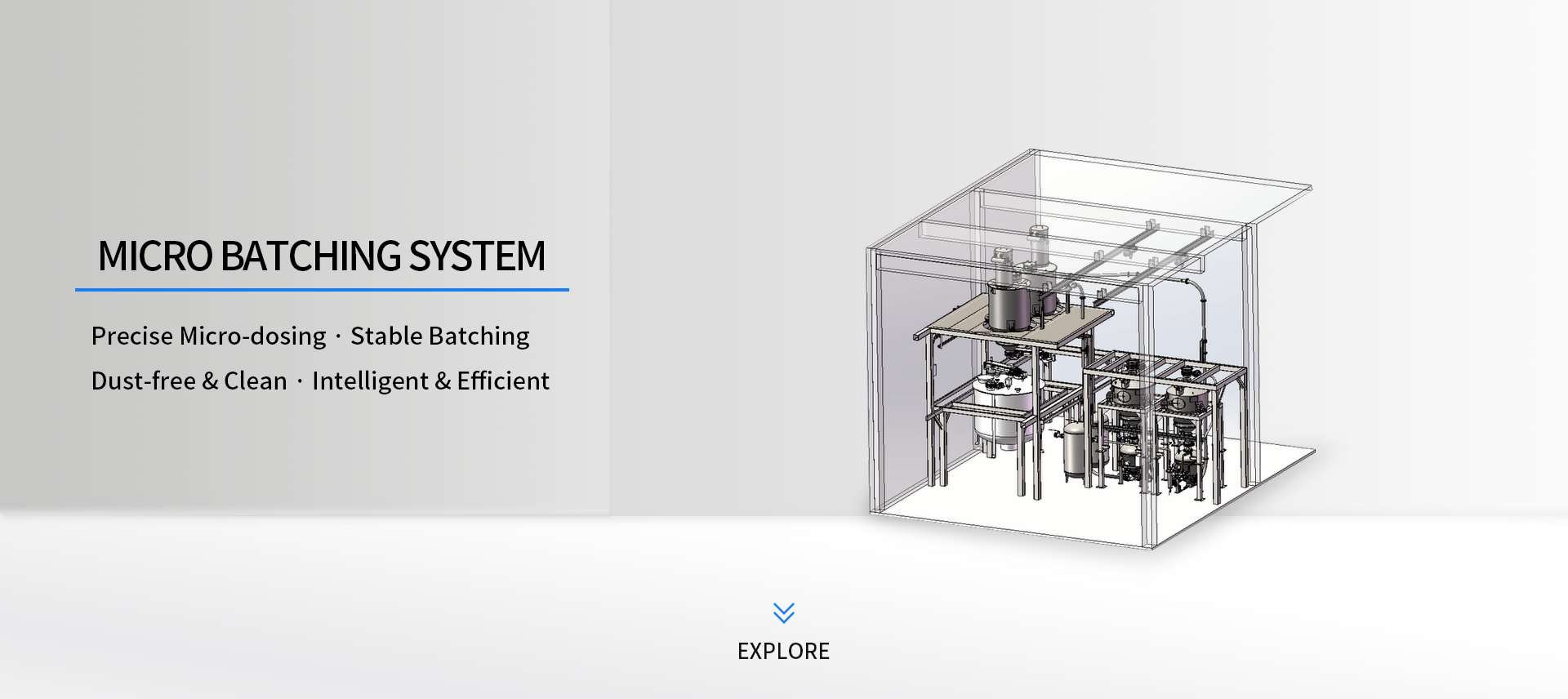

Micro Batching System-Micro Batching System-

应用场景

· Chemical: Plastic modification, rubber additives, masterbatch, catalysts
· Food & Pharma: Additives, excipients, pharmaceutical ingredients,
seasonings
· New Materials & Energy: Battery agents, flame retardants,
functional powders
· Building & Coatings: Coating additives, curing agents,
special mortar additives

产品规格

· Accuracy: Dynamic ±0.2%–±0.5% (material-dependent)
· Range: 1g/h–50kg/h
· Metering: Micro screw, loss-in-weight, volumetric (optional)
· Control: PLC + HMI, formula storage, sequence control
· Material: Powder & fine granules ≤1mm, 0.3–2.0t/m³, low viscosity
· Construction: 304/316 stainless steel, corrosion-resistant, easy clean
· Standard Config: Hopper with arch breaker, metering unit, feeding port,
dust collector

High Precision Metering

Adopts precision metering and

multi-calibration algorithms for

high-accuracy micro dosing,

avoiding product performance

issues caused by dosage deviation.

Stable Feeding

Low-speed stable conveying and anti-bridging design solve caking and poor flowability. Uniform,

pulse-free feeding ensures

continuous production.

Automated Integration

Seamlessly connects with main production lines for automatic feeding and one-click formula switching, reducing manual intervention and errors.

Clean & Easy Maintenance

Closed structure with quick-disassembly design, dust-free, eco-friendly and

hygienic. Easy to clean for

high-sanitation applications.
